TASUKI

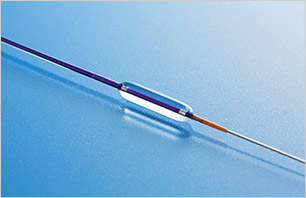

The sholder angle is set at 70° to control longitudinal expansion of the balloon during inflation under high pressure.
Designed with the industries leading short shoulder design
Short shoulder design supports precise and reliable dilatation of blood vessels to the stent edges.

Employs Raiden^®3(R3 Tech.), a clinically proven catheter shaft technology, to ensure smooth insertion and outstanding trackability.

Maximum compatible guidewire diameter: 0.014 inch

Catalogue Number	Balloon Diameter (mm)	Balloon Length (mm)	Shaft Outer Diameter(Fr/mm)
Catalogue Number	Balloon Diameter (mm)	Balloon Length (mm)	Distal	Proximal
TS-8-200	2.00	8	2.5/0.84	2.1/0.70
TS-8-225	2.25	8	2.6/0.86	2.1/0.70
TS-8-250	2.50	8	2.6/0.86	2.1/0.70
TS-8-275	2.75	8	2.6/0.86	2.1/0.70
TS-8-300	3.00	8	2.6/0.86	2.1/0.70
TS-8-325	3.25	8	2.6/0.86	2.1/0.70
TS-8-350	3.50	8	2.7/0.90	2.1/0.70
TS-8-375	3.75	8	2.7/0.90	2.1/0.70
TS-8-400	4.00	8	2.7/0.90	2.1/0.70
TS-8-425	4.25	8	2.7/0.90	2.1/0.70
TS-8-450	4.50	8	2.7/0.90	2.1/0.70
TS-12-200	2.00	12	2.5/0.84	2.1/0.70
TS-12-225	2.25	12	2.6/0.86	2.1/0.70
TS-12-250	2.50	12	2.6/0.86	2.1/0.70
TS-12-275	2.75	12	2.6/0.86	2.1/0.70
TS-12-300	3.00	12	2.6/0.86	2.1/0.70
TS-12-325	3.25	12	2.6/0.86	2.1/0.70
TS-12-350	3.50	12	2.7/0.90	2.1/0.70
TS-12-375	3.75	12	2.7/0.90	2.1/0.70
TS-12-400	4.00	12	2.7/0.90	2.1/0.70
TS-12-425	4.25	12	2.7/0.90	2.1/0.70
TS-12-450	4.50	12	2.7/0.90	2.1/0.70
TS-16-200	2.00	16	2.5/0.84	2.1/0.70
TS-16-225	2.25	16	2.6/0.86	2.1/0.70
TS-16-250	2.50	16	2.6/0.86	2.1/0.70
TS-16-275	2.75	16	2.6/0.86	2.1/0.70
TS-16-300	3.00	16	2.6/0.86	2.1/0.70
TS-16-325	3.25	16	2.6/0.86	2.1/0.70
TS-16-350	3.50	16	2.7/0.90	2.1/0.70
TS-16-375	3.75	16	2.7/0.90	2.1/0.70
TS-16-400	4.00	16	2.7/0.90	2.1/0.70
TS-21-225	2.25	21	2.6/0.86	2.1/0.70
TS-21-250	2.50	21	2.6/0.86	2.1/0.70
TS-21-275	2.75	21	2.6/0.86	2.1/0.70
TS-21-300	3.00	21	2.6/0.86	2.1/0.70
TS-21-325	3.25	21	2.6/0.86	2.1/0.70
TS-21-350	3.50	21	2.7/0.90	2.1/0.70
TS-21-375	3.75	21	2.7/0.90	2.1/0.70
TS-21-400	4.00	21	2.7/0.90	2.1/0.70
