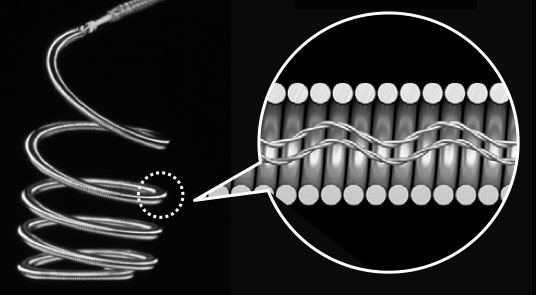

Waving Inner Wire (made of 10 μm-twined platinum wires) enables smooth coil-folding till the end of the coil even in a small space.
Catalogue Number |
Primary coil diameter (inch) |
Secondary coil diameter (mm) |
Primary coil length (cm) |
---|---|---|---|
353-01H1R | 0.010 | 1.5 | 1 |
353-01H2R | 2 | ||
353-01H3R | 3 | ||
353-0202R | 0.010 | 2 | 2 |
353-0203R | 3 | ||
353-0204R | 4 | ||
353-0206R | 6 | ||
353-0208R | 8 | ||
353-02H3R | 0.010 | 2.5 | 3 |
353-02H4R | 4 | ||
353-02H6R | 6 | ||
353-0303R | 0.010 | 3 | 3 |
353-0304R | 4 | ||
353-0306R | 6 | ||
353-03H6R | 0.010 | 3.5 | 6 |
353-03H8R | 8 | ||
353-0406R | 0.010 | 4 | 6 |
353-0408R | 8 |
