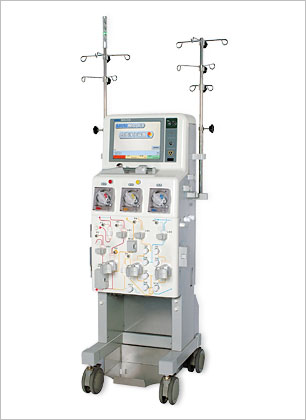

MA-03
MA-03
Comfortable Operational Feeling
A large (12.1-inch) color LCD operation panel provise improved operability and response of the touch-panel.Memory Card Slot Featured
With the treatment data logging function, data of the operation status, alarm history, blood pressure fluctuation, etc. can be memorized in a compact flash memory card and retrieved on a PC (in Excel format).Safety in accordance with Global Standard
The safety monitoring function that complies with the international standard (IEC 6060-1) is featured, wherein two microprocessors always monitor the safety of the treatment.Setting-up of Optional Functions available
The automatic blood pressure monitor and the nurse call unit, which enable constant monitoring of the patient's state can be set up as optional functions.
| Outer Dimensions | (W)440×(D)345×(H)1370mm | |
|---|---|---|
| Electric Ratings | Rated voltage/frequency Max. power consumption |
100V AC50/60Hz 0.35kW |
| Weight | About 77kg | |
| Pump | Blood pump Plasma pump Replacement fluid pump Perfusion pump |
7 to 200mL/min 4 to 90mL/min 4 to 90mL/min 0.0 to 10.0mL/hour |
| Monitor / Operation Panel | TFT color LCD with touching keys (12.1-inch display) | |
| Pressure monitor | Arterial pressure Venous pressure Blood inlet pressure Plasma pressure Plasma inlet pressure Replacement fluid pressure Plasma outlet pressure |
-300 to +300mmHg -200 to +600mmHg -200 to +600mmHg -200 to +600mmHg -200 to +600mmHg -200 to +600mmHg -200 to +600mmHg |
| Blood Warmer | Plate type | 35.0～39.0°C |
| Fluid Detectors | Air bubbles Liquid exhaustion Level Waste liquid concentration Blood leakage |
Ultrasonic detector Ultrasonic detector Ultrasonic detector Conductivity detector Optical detector |
| Data Logging unit | With CF (compact flash) card | |
Optional Specifications
| Blood-pressure Gauge (Non-invasive Type) | Nurse call unit |
|---|
