- OHICHO Ⅲ
OHICHO Ⅲ
OHICHO Ⅲ
Tip
The distal tip with smooth-tapered shape and flexibility ensures high crossability.*Shaft
The high rigidity shaft transmits efficiently the pushing force of the hand to the tip of the catheter.*Balloon

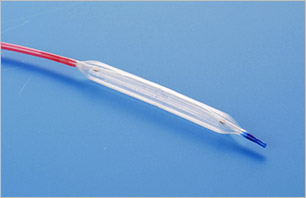

The non-coating balloon reduces slipping during the balloon dilatation.* * Comparison with our existing products.
Maximum compatible guidewire diameter: 0.035 inch
| Catalogue Number |
Balloon Diameter (mm) |
Balloon Length (mm) |
Catheter Effective Length (mm) |
Shaft Diameter (Fr/mm) |
Compatible Sheath (Fr) |
|---|---|---|---|---|---|
| CH45-4020 | 4.0 | 20 | 450 | 5.0/1.65 | 5 |
| CH45-5020 | 5.0 | 20 | 450 | 5.0/1.65 | 5 |
| CH45-6020 | 6.0 | 20 | 450 | 5.0/1.65 | 5 |
| CH45-4040 | 4.0 | 40 | 450 | 5.0/1.65 | 5 |
| CH45-5040 | 5.0 | 40 | 450 | 5.0/1.65 | 5 |
| CH45-6040 | 6.0 | 40 | 450 | 5.0/1.65 | 5 |
| CH45-7040 | 7.0 | 40 | 450 | 5.0/1.65 | 6 |
| CH75-4020 | 4.0 | 20 | 750 | 5.0/1.65 | 5 |
| CH75-5020 | 5.0 | 20 | 750 | 5.0/1.65 | 5 |
| CH75-6020 | 6.0 | 20 | 750 | 5.0/1.65 | 5 |
| CH75-4040 | 4.0 | 40 | 750 | 5.0/1.65 | 5 |
| CH75-5040 | 5.0 | 40 | 750 | 5.0/1.65 | 5 |
| CH75-6040 | 6.0 | 40 | 750 | 5.0/1.65 | 5 |
| CH75-7040 | 7.0 | 40 | 750 | 5.0/1.65 | 6 |
