IKAZUCHI PAD

Product Name

IKAZUCHI PAD

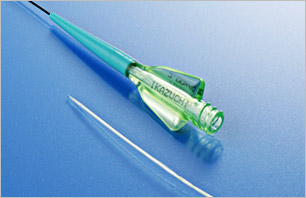

IKAZUCHI PAD image

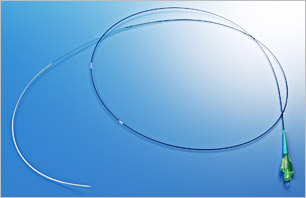

IKAZUCHI PAD image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

PCI Quality
State-of-the-art PTCA balloon technique enables sure approaches to peripheral vessels.
Super Low Profile
Low profile from tip to balloon.
Excellent Trackability
A long 1,460 mm shaft allows approaches to the distal end.

Product Specifications

Catalogue
number
Balloon diameter (mm) Balloon length (mm) Shaft diameter (Fr/mm)
Distal Guidewire port Proximal
R7P-M2-200 2.00 20 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M2-250 2.50 20 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M2-300 3.00 20 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M2-350 3.50 20 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M2-400 4.00 20 2.7/0.90 2.7/0.90 1.9/0.63
R7P-M4-200 2.00 40 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M4-250 2.50 40 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M4-300 3.00 40 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M4-350 3.50 40 2.4/0.80 2.6/0.88 1.9/0.63
R7P-M4-400 4.00 40 2.7/0.90 2.7/0.90 1.9/0.63

Compliance Chart
