Products Information

JAMIRO III

Product Name

JAMIRO III

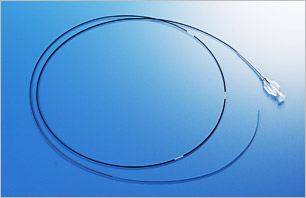

JAMIRO III image

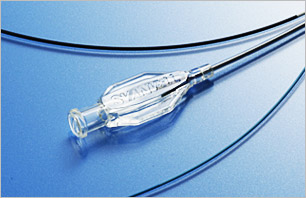

JAMIRO III image
JAMIRO III image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

High Selectivity
A "step-lumen configuration" makes proximal inner diameters bigger than distal inner diameters. This configuration ensures the crossability of coils, thus maintaining the selectivity of JAMIRO II 2.1 Fr.
Maneuverability
The "stretch resistance structure" prevents the catheter tip from being stretched. It allows smooth guidewire sliding performance.
Guidewire Insertion Performance
A "single-piece molded hub-shaft" offers superior crossability to angled-tip guidewires.

Product Specifications

Catalogue
number
J3S2105S
J3S2105R
J3S2130S
J3S2130R
J3S2150S
J3S2150R
Effective length (cm)
105
130
150
Configuration
Straight
Angle
Straight
Angle
Straight
Angle
Outer diameter (distal/proximal)
2.1Fr/2.9Fr
Inner diameter
0.020" ( 0.51mm)
Maximum infusion pressure (open)
1200psi (8400kPa)
Compatible guiding catheter, minimum inner diameter
0.041" (1.05mm)
Maximum compatible guidewire
0.014"
