Products Information

JAMIRO II

Product Name

JAMIRO II

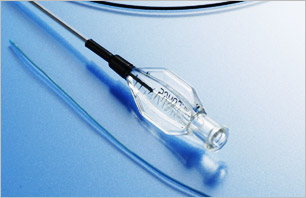

JAMIRO II image

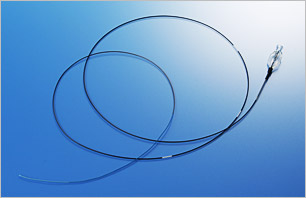

JAMIRO II image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Depth Marker for Reduced Exposure Dose
Depth markers at 60 cm, 70 cm and 80 cm from the tip of the catheter shaft.
These markers allow visual confirmation of the depth of inserted catheter, resulting in a reduction in exposure dose.
Improved Trackability
Improved guidewire trackability in tortuous lesion.
Excellent Visibility
The optimum radiopacity of the shaft allows easy confirmation of the catheter condition in vessels and the position of inserted device.
Guidewire Insertion Performance
A "single-piece molded hub-shaft" offers superior crossability to angled-tip guidewires.

Product Specifications

Tip Outer diameter
2.1Fr
Configuration
Straight
Angle
Straight
Angle
Straight
Angle
Catalogue
number
J2S2105S
J2S2105R
J2S2130S
J2S2130R
J2S2150S
J2S2150R
Effective length
(cm)
105
130
150
Flexible length
(cm)
50
Outer diameter (distal/proximal)
2.1Fr/2.7Fr
Inner diameter
0.020" ( 0.51mm)
Maximum infusion pressure (open)
1200psi (8400kPa)
Compatible guiding catheter, minimum inner diameter
1.00mm (0.039")
Maximum compatible guidewire
0.014"
Tip Outer diameter
2.3Fr
Configuration
Straight
Angle
Straight
Angle
Straight
Angle
Catalogue
number
J2S2305S
J2S2305R
J2S2330S
J2S2330R
J2S2350S
J2S2350R
Effective length
(cm)
105
130
150
Flexible length
(cm)
50
Outer diameter (distal/proximal)
2.3Fr/2.9Fr
Inner diameter
0.022" (0.56mm)
Maximum infusion pressure (open)
1200psi (8400kPa)
Compatible guiding catheter, minimum inner diameter
1.05mm (0.041")
Maximum compatible guidewire
0.018"
