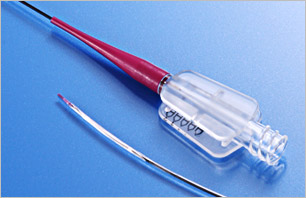

bp22 image
bp22 image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Stable Low Compliance
Lesion dilation is ensured by making use of low compliance feature to control pressure.
Precise Post-Stenting Placement

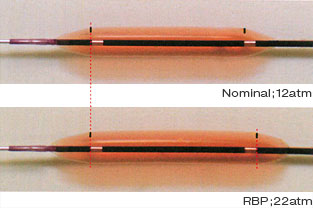

The effective length of the balloon corresponds to the length between the outer sides of both markers at the RBP pressure. The extremely improved precision of balloon placement allows stents to be placed accurately in the target position.
Stable Rewrappability when Deflated
The balloon is rewrapped in a stable shape when deflated by controlling membrane thickness in the process of balloon molding. The resulting low profile balloon reduces resistance when re-crossed.
Low Profile Initial Balloon and Shaft Design
Crossability is markedly improved by the use of soft resin, a smooth taper and rounded process of the entry part.

Product Specifications

Catalogue number Balloon diameter (mm) Balloon length (mm) Shaft diameter (Fr/mm)
Distal Guidewire port Proximal
BP10200A 2.00 10 2.6(0.86) 2.6(0.88) 2.1(0.71)
BP10225A 2.25
BP10250A 2.50
BP10275A 2.75
BP10300A 3.00
BP10325A 3.25
BP10350A 3.50 2.7(0.90) 2.9(0.98)
BP10375A 3.75
BP10400A 4.00
BP15200A 2.00 15 2.6(0.86) 2.6(0.88) 2.1(0.71)
BP15225A 2.25
BP15250A 2.50
BP15275A 2.75
BP15300A 3.00
BP15325A 3.25
BP15350A 3.50 2.7(0.90) 2.9(0.98)
BP15375A 3.75
BP15400A 4.00
Compliance Chart
