CLOT SHOOTER

Product Name

CLOT SHOOTER

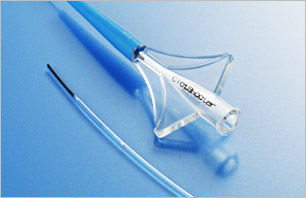

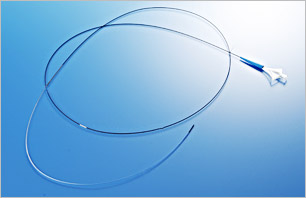

CLOT SHOOTER image
CLOT SHOOTER image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Easy Infusion System
Easy-to-use package of one-way valve and infusion lock syringe
Rapid Exchange Type
Enables rapid delivery and exchange of catheters.
Mounted with Ichibanyari (2T) Flexible Tip
Exhibits high crossability even at stenosed parts.
Compatible with 0.014" and 0.018" guidewire
Reference flow rate, flow rate (mL/sec)
Sideport
number		 3atm 5atm 10atm
5 0.12 0.18 0.35
9 0.12 0.20 0.35
11 0.14 0.21 0.38
26 0.14 0.24 0.41

Product Specifications

Catalogue
number		 Compatible guidewire (inch) Effective length of shaft (mm) Outer diameter of shaft (mm/Fr) Infusion zone (mm) Sideport number
CS24L105 0.014 1450 0.9/2.7 10 5
CS24L209 0.014 1450 0.9/2.7 20 9
CS24L326 0.014 1450 0.9/2.7 30 26
CS28L411 0.018 1450 1.0/3.0 40 11
