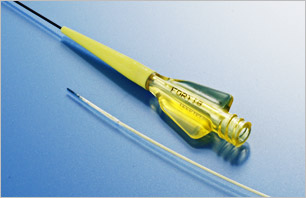

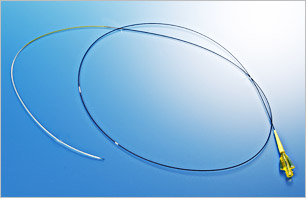

FORTIS II

*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

High Pressure Balloon

Nominal pressure 12 atm, RBP 22 atm (2.50 mm-4.00 mm) and 20 atm (4.25 mm-4.50 mm).

Low Compliance Balloon

A new balloons molding method enables to control compliance and reduces the risk of dog-bone phenomenon.

Slender Distal Shaft

The part between the distal end and guiding wire inlet is downsized to 2.6 Fr (compatible with balloons up to Φ3.25 mm in diameter).

Catalogue number	Balloon size (mm)	Balloon length (mm)	Shaft diameter (Fr/mm)
Catalogue number	Balloon size (mm)	Balloon length (mm)	Distal	Guidewire port	Proximal
R5a- 8-250	2.50	8	2.6/0.86	2.6/0.88	2.1/0.70
R5a- 8-275	2.75	8	2.6/0.86	2.6/0.88	2.1/0.70
R5a- 8-300	3.00	8	2.6/0.86	2.6/0.88	2.1/0.70
R5a- 8-325	3.25	8	2.6/0.86	2.6/0.88	2.1/0.70
R5a- 8-350	3.50	8	2.7/0.90	2.9/0.95	2.1/0.70
R5a- 8-375	3.75	8	2.7/0.90	2.9/0.95	2.1/0.70
R5a- 8-400	4.00	8	2.7/0.90	2.9/0.95	2.1/0.70
R5a-13-250	2.50	13	2.6/0.86	2.6/0.88	2.1/0.70
R5a-13-275	2.75	13	2.6/0.86	2.6/0.88	2.1/0.70
R5a-13-300	3.00	13	2.6/0.86	2.6/0.88	2.1/0.70
R5a-13-325	3.25	13	2.6/0.86	2.6/0.88	2.1/0.70
R5a-13-350	3.50	13	2.7/0.90	2.9/0.95	2.1/0.70
R5a-13-375	3.75	13	2.7/0.90	2.9/0.95	2.1/0.70
R5a-13-400	4.00	13	2.7/0.90	2.9/0.95	2.1/0.70
R5a-13-425	4.25	13	2.7/0.90	2.9/0.95	2.1/0.70
R5a-13-450	4.50	13	2.7/0.90	2.9/0.95	2.1/0.70
R5a-18-250	2.50	18	2.6/0.86	2.6/0.88	2.1/0.70
R5a-18-275	2.75	18	2.6/0.86	2.6/0.88	2.1/0.70
R5a-18-300	3.00	18	2.6/0.86	2.6/0.88	2.1/0.70
R5a-18-325	3.25	18	2.6/0.86	2.6/0.88	2.1/0.70
R5a-18-350	3.50	18	2.7/0.90	2.9/0.95	2.1/0.70
R5a-18-375	3.75	18	2.7/0.90	2.9/0.95	2.1/0.70
R5a-18-400	4.00	18	2.7/0.90	2.9/0.95	2.1/0.70

* (Note) Length of balloon : Actual values shown (Nominal value : 9, 13, 16 mm)
