Products Information

IKAZUCHI X

Product Name

IKAZUCHI X

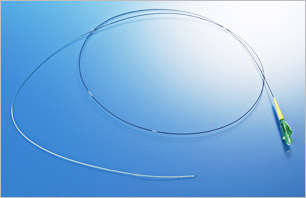

IKAZUCHI X image

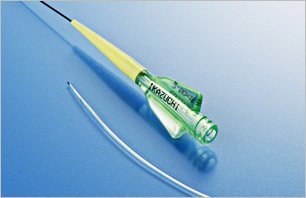

IKAZUCHI X image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Compatible with 0.010" Wire
A new type of catheter compatible with 0.010" wire is added to the IKAZUCHI lineup, known for high crossability, to perform minimally invasive PCI procedures.
Slender Shaft
Superior trackability and crossability in tortuous lesions are provided with a low profile tip and shaft, and use of 0.010" wire.

Product Specifications

Catalogue number Balloon size (mm) Balloon length (mm) Shaft diameter (Fr/mm)
Distal Proximal
R7S- 9-150 1.50 9 2.1/0.70 1.9/0.63
R7S-15-200 2.00 15 2.1/0.70 1.9/0.63
R7S-15-225 2.25 15 2.1/0.70 1.9/0.63
R7S-15-250 2.50 15 2.1/0.70 1.9/0.63
R7S-15-275 2.75 15 2.1/0.70 1.9/0.63
R7S-15-300 3.00 15 2.1/0.70 1.9/0.63
R7S-15-325 3.25 15 2.1/0.70 1.9/0.63
R7S-15-350 3.50 15 2.1/0.70 1.9/0.63
Compliance Chart
