Product Information

Duple Soft (Connection Type)

Product Name

Duple Soft (Connection Type)
SILASCON(R)

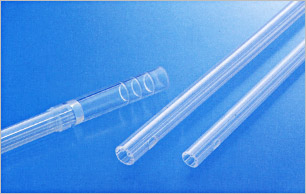

Duple Soft Connection Type

Product Features

Less Invasive
The drainage catheter is soft and designed to be less invasive to the tissues.
Efficient Drainage
The drainage catheter has multiple side-holes so that very efficient drainage is possible.
Ridges on the inner lumen enhance kink-resistance.
Effective drainage is ensured even for drain with higher viscosity
The large diameter lumen enables effective drainage even for drain with higher viscosity.
Equipped with radiopaque line-marker
The radiopaque line-marker makes it possible to confirm the position for the drainage.

Product Specifications

The product is sterilized by ethylene oxide.

Catalogue
Number
Size (mm) Packing
Unit
Inner
Diameter
Outer
Diameter
Minimum
Inner Diameter
of the Connector
Length
522-6N 3.8 6.0 8.0 400 10 pieces/box
522-8N 5.2 8.0 8.0 400 10 pieces/box
522-10N 6.6 10.0 8.0 400 10 pieces/box
