Product Information

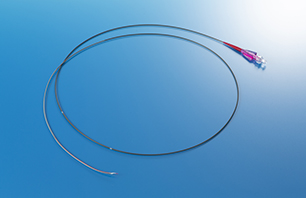

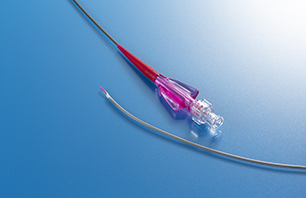

Thrombuster PRO GR

Product Name

Thrombuster PRO GR
Thrombuster PRO GR
Thrombuster PRO GR

Product Features

Large lumen for high-powered and stable suction performance in urgent situations
GR Product Features
  • The PRO GR model uses the Extra-Large Aspiration Lumen Shaft which is 16% larger than the Pro SL model's Inner diameter *. This gives higher aspiration performance than the crossability-oriented PRO SL model.
    *When compared to the inner diameter of the PRO SL in the proximal part.(6Fr)
  • The Kink-Resistant Steel (KRS) braided shaft improves kink resistance.

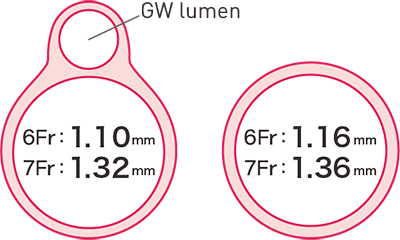

Extra Large Aspiration Lumen
Catheter cross sections

Innner diameter of the distal part(mm)

Inner diameter of the proximal part(mm)

Braided Shaft Design
Kaneka has combined our catheter manufacturing technology with a new Kink-Resistant Steel(KRS) braid into a shaft that is thin but provides higher insertion performance and kink resistance.

Image of Braided shaft
New Hydrophilic Coating
Both catheter products feature Kaneka's own new hydrophilic coating, which provides improved lubrication performance that reduces insertion resistance. This new coating shows durability and resistance to deterioration even when the catheter is repeatedly and removed.

*Comparison with our current product in internal test

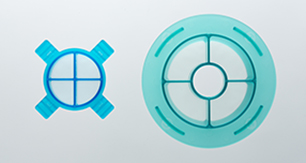

Cell strainers
The package includes a large cell strainer and a small cell srtrainer to quickly and safely filter out thrombi and other emboli collected during a procedure. 2 types will able to match the differences in each facility, and the large-sized strainer employs a design for easier drainage.

Small-sized strainer
Upper opened diameter
: 4.5cm
Lower filter diameter
: 4.5cm

Lage-sized strainer
Upper opened diameter
: 8cm
Lower filter diameter
: 7.5cm

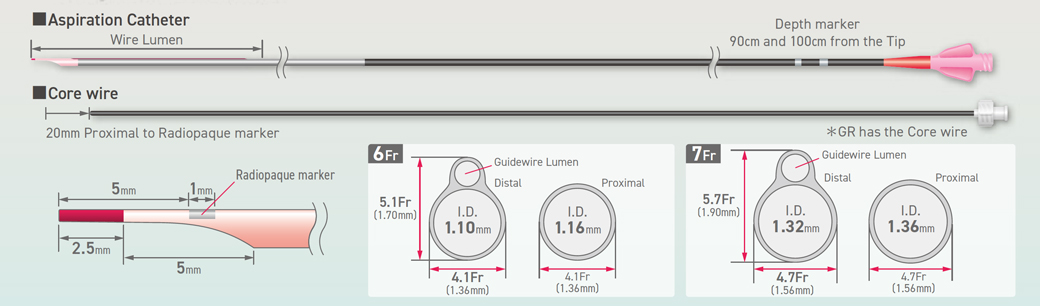

Shape and Structure

Ordering Information

Catheter Effective Length:140cm
Maximam Guidewire Diameter:0.014"
Compatible Guide catheter Shaft Guidewire Lumen
Catalogue Number size Minimum Inner Diameter inch (mm) Outer Diameter
Inner Diameter
Outer Diameter
TP-GR6PE 6Fr 0.070(1.78) 5.1 1.16 1.70 12
TP-GR7PE 7Fr 0.080(2.03) 5.7 1.36 1.90 12
