Product Information

Thrombuster II 8Fr, 9Fr

Product Name

Thrombuster II 8Fr, 9Fr

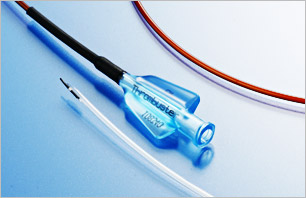

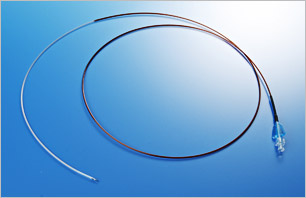

Thrombuster II 8Fr, 9Fr image
Thrombuster II 8Fr, 9Fr image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Improved Aspiration
Aspiration is improved by lowering flow resistance with "large" and "circular" aspiration lumen.
Improved Flexibility
The flexibility of the distal shaft was improved by shortening the wire lumen.
Smooth Insertion into Vessels
Smooth insertion into vessels is ensured because of the hydrophilic coating over the first 30 cm from the tip.
Added Kink Resistance
Pushability and kink resistance are added by use of a removable core wire.

Product Specifications

Catalogue
number		 Minimum inner diameter of compatible guiding catheter (inch/mm) Maximum compatible guidewire (inch) Shaft diameter, outer diameter (Fr)/inner diameter (mm) Wire lumen (mm) Effective length of shaft (mm)
Distal Proximal Maximum outer diameter Length
T2R8SA4W 0.089/2.26 0.014 5.2/1.35 5.2/1.50 2.10 10

1400
T2R9SA4W 0.097/2.46 0.014 6.0/1.50 6.0/1.75 2.30 10 1400
