Product Information


Product Name


Product Features

For the advanced stage of trackability and crossability
A guidewire support catheter for expanding needs in the real world PCI.
Advanced Hydrophilic coating
Our new technology in the hydrophilic coating realizes excellent trackability and corassability*1 for the success in the procedures.
Product lineup with 2 types
Two types with different tip stiffness (Standard and FX type) enlarge the applicability of the product to wider range of cases and situations.
Unique and advanced shaft design

Fluoro-resin inner surface for lubricity reinforced with braiding and the smooth transition of the shaft stiffness achieves guidewire maneuverability, trackability and crossability*1.

*1 Comparison with our conventional product according to the company test data.

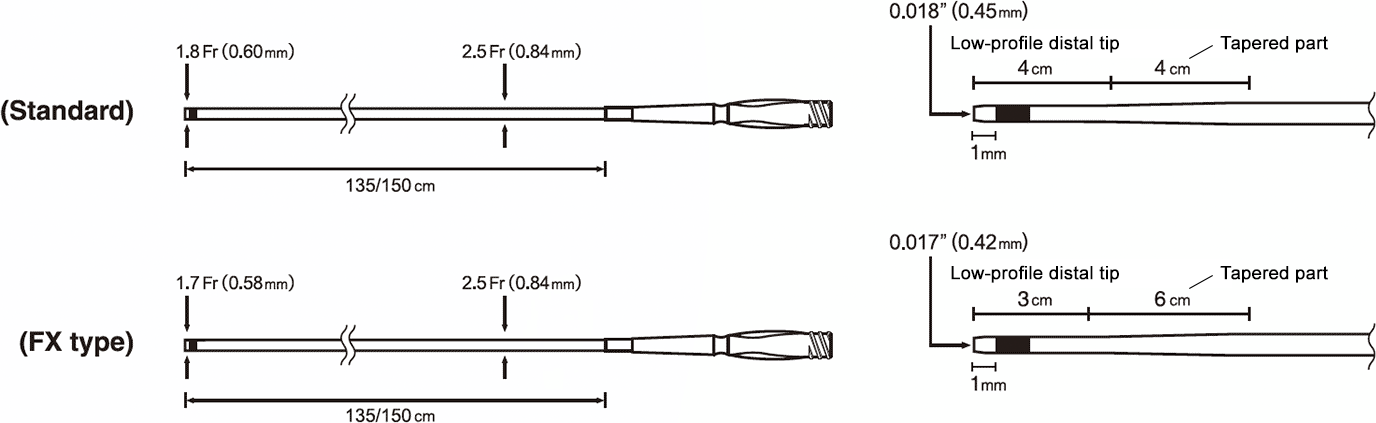

Ordering Information

Maximum compatible guidewire outer diameter: 0.014 inch
Effective Length
Outer Diameter (Fr) Inner Diameter (inch) Type
Tip Distal Proximal Distal Proximal
MZ14-135BM 135 1.8 1.8 2.5 0.018 0.022 Standard
MZ14-150BM 150
MZ14-135TM 135 1.7 1.7 0.017 FX type
MZ14-150TM 150
