Products Information


Product Name

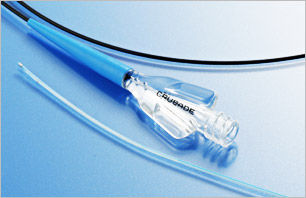

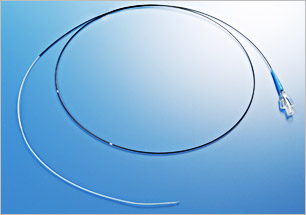

Crusade image
Crusade image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Superior Shaft Maneuverability
Optimized configuration and materials enable superior shaft maneuverability.
  • Distal shaft with slender flexible tip
  • Flexible and strong proximal shaft
Superior GW Movement
A "double layer lumen" allows superior GW movement.
Easy to Estimate the Length of Lesion
Two radiopaque markers on the RX lumen make it easy to estimate the length of the lesion.

Product Specifications

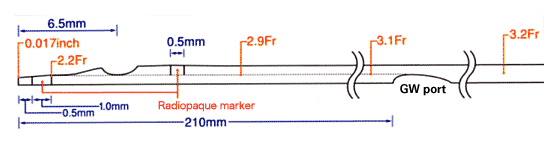

Type Maximum guidewire diameter (inch) Device illustration
KMF0114A Standard

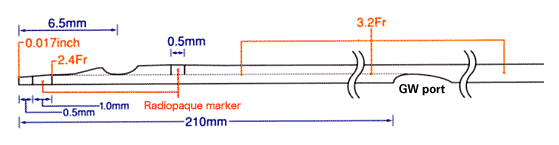

KMF0114H Hard

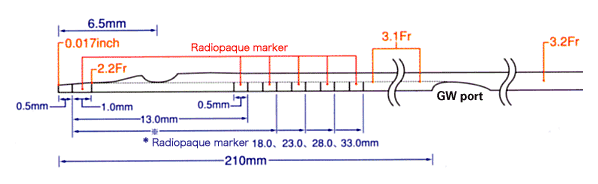

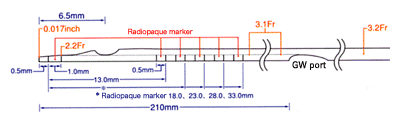

KMF0114M Multi-marker
Enlarge iconClick to enlarge image
