Product Information

ED COIL ∞10

Product Name

ED COIL ∞10 Soft
ED COIL ∞10
ED COIL ∞10 ExtraSoft
ED COIL ∞10

Product Features

Simplified coil selection.
  • Soft
    Conforming outward to reduce compartment space by assisting the frame in the filling process.
  • ExtraSoft
    Compactly folding and entering into even a gap space.
Conforming outward in accordance with the shape of an aneurysm even with irregular shape.
Provides a tight embolization with a small number of coils for a main vessel occlusion.
shapeInfini Soft's large coil-diameter reduces the risk of coil-protrusion through a stent strut into the parent artery, and it enables its use for both framing and filling with less concern to the size of coil.
shapeInfini Soft conforms outward to the aneurysm wall, thereby contributing to uniform packing even in an aneurysm with irregular shape.

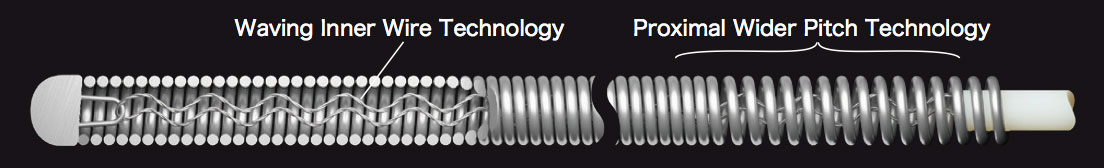

Waiving Inner Wire Technology enables coil-folding in smaller size despite its large primary coil-diameter.

Product Introduction movie

Procedural Guidance
Procedural Guidance

Ordering Information

ED COIL ∞10 Soft
Catalogue
Number
Primary
coil diameter
(inch)
Secondary
coil diameter
(mm)
Primary
coil length
(cm)
352-1610R 0.010 16 10
352-1620R 0.010 20
352-1630R 0.010 30

ED COIL ∞10 ExtraSoft
Catalogue
Number
Primary
coil diameter
(inch)
Secondary
coil diameter
(mm)
Primary
coil length
(cm)
353-1610R 0.010 16 10
353-1615R 0.010 15
