35YOROI
35YOROI
Shaft-balance suitable for high pressure-resistant balloon ensures further reliable VAIVT procedure.
Non-compliant balloon with RBP of 30 atm
Robust dilatation is ensured at both low and high inflation pressure-levels by the wide working range.
| Catalogue Number |
Catheter Effective Length (mm) |
Balloon Diameter (mm) |
Balloon Length (mm) |

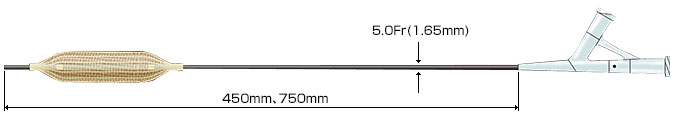

Shaft Diameter (Fr/mm) |
Guidewire maximum diameter (inch) |
Compatible Sheath (Fr) |
|---|---|---|---|---|---|---|
| YR45-4020H | 450 | 4.0 | 20 | 5.0/1.65 | 0.035 | 5 |
| YR45-5020H | 5.0 | 20 | 5 | |||
| YR45-6020H | 6.0 | 20 | 6 | |||
| YR45-4040H | 4.0 | 40 | 5 | |||
| YR45-5040H | 5.0 | 40 | 5 | |||
| YR45-6040H | 6.0 | 40 | 6 | |||
| YR45-7040H | 7.0 | 40 | 6 | |||
| YR45-4080H | 4.0 | 80 | 5 | |||
| YR45-5080H | 5.0 | 80 | 6 | |||
| YR45-6080H | 6.0 | 80 | 6 | |||
| YR75-4020H | 750 | 4.0 | 20 | 5 | ||
| YR75-5020H | 5.0 | 20 | 5 | |||
| YR75-6020H | 6.0 | 20 | 6 | |||
| YR75-4040H | 4.0 | 40 | 5 | |||
| YR75-5040H | 5.0 | 40 | 5 | |||
| YR75-6040H | 6.0 | 40 | 6 | |||
| YR75-7040H | 7.0 | 40 | 6 | |||
| YR75-4080H | 4.0 | 80 | 5 | |||
| YR75-5080H | 5.0 | 80 | 6 | |||
| YR75-6080H | 6.0 | 80 | 6 |
