SHIRANUI SOFLEX

*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Compatible with 4 Fr Sheath*

Reduced ballon wall thickness makes it compatible with 4 Fr sheaths.*
* Compatible with balloons up to 6 mm in diameter

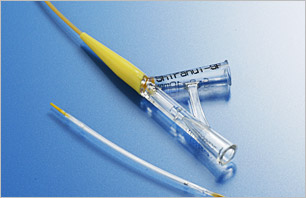

Smooth Insertion

Tapered tip allows smooth insertion

Flexible Shaft

Flexible small profile shaft of 3.8 Fr (1.25 mm)

Ordering Information

Catalogue number	Balloon diameter (mm)	Balloon length (mm)	Effective length of catheter (cm)	Shaft diameter (Fr)	Guidewire maximum diameter (inch)	Compatible sheath (Fr）
SF45-4020	4.0	20	45	3.8	0.018	4
SF45-5020	5.0	20	45	3.8	0.018	4
SF45-6020	6.0	20	45	3.8	0.018	4
SF45-7020	7.0	20	45	3.8	0.018	5
SF45-4040	4.0	40	45	3.8	0.018	4
SF45-5040	5.0	40	45	3.8	0.018	4
SF45-6040	6.0	40	45	3.8	0.018	4
SF45-7040	7.0	40	45	3.8	0.018	5
SF75-4020	4.0	20	75	3.8	0.018	4
SF75-5020	5.0	20	75	3.8	0.018	4
SF75-6020	6.0	20	75	3.8	0.018	4
SF75-7020	7.0	20	75	3.8	0.018	5
SF75-4040	4.0	40	75	3.8	0.018	4
SF75-5040	5.0	40	75	3.8	0.018	4
SF75-6040	6.0	40	75	3.8	0.018	4
SF75-7040	7.0	40	75	3.8	0.018	5
