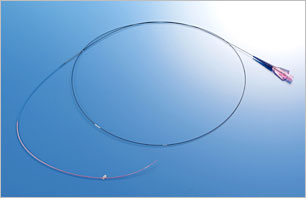

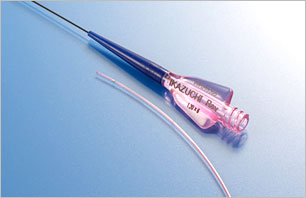

IKAZUCHI-Rev

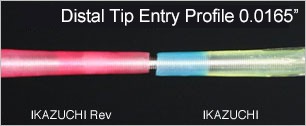

Low Profile

Slender tip achieved by combination of flexible material, smooth tapering and round-shaping of the entry portion. Further reduced diameters of balloons and shafts over the entire length.

New P.T.M shaft

Ideal shaft balance to efficiently transmit the pushing force of the hand to the tip of the catheter.

New Hydrophilic Coating

Advanced surface lubricity and stable durability achieved by the new hydrophilic polymer coating.

Catalogue Number	Baloon Diameter (mm)	Baloon Length (mm)	Shaft Diameter (Fr/mm)
Catalogue Number	Baloon Diameter (mm)	Baloon Length (mm)	Distal	Proximal
R7R-6-120	1.20	6	2.5/0.84	1.9/0.63
R7R-15-150	1.50	15	2.5/0.84	1.9/0.63
R7R-15-200	2.00	15	2.5/0.84	1.9/0.63
R7R-15-225	2.25	15	2.4/0.81	1.9/0.63
R7R-15-250	2.50	15	2.4/0.81	1.9/0.63
R7R-15-275	2.75	15	2.4/0.81	1.9/0.63
R7R-15-300	3.00	15	2.7/0.84	2.0/0.68
R7R-15-325	3.25	15	2.7/0.84	2.0/0.68
R7R-15-350	3.50	15	2.7/0.84	2.0/0.68
R7R-20-200	2.00	20	2.7/0.84	1.9/0.63
R7R-20-250	2.50	20	2.4/0.81	1.9/0.63
R7R-20-300	3.00	20	2.5/0.84	2.0/0.68
R7R-20-350	3.50	20	2.5/0.84	2.0/0.68

* Balloons with 1.20 mm and 1.50 mm have only one radioparque marker.
Catheter effectrive length: 1.460 mm
Maximum compatible guidewire outer diameter: 0.014”
