Thrombuster III 6Fr, 7Fr

Product Name

Thrombuster III 6Fr, 7Fr

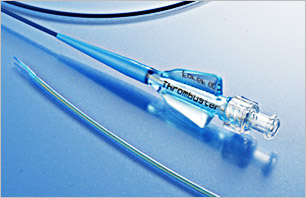

Thrombuster III 6Fr, 7Fr image

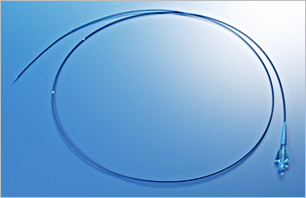

Thrombuster III 6Fr, 7Fr image
*This is English translation of web-site intended for viewers in Japan. Therefore, products shown may not be qualified for supply outside of Japan. Please send us message if you have any inquiries pertaining to products approval or supply outside of Japan.

Product Features

Dramatically Improved Deliverability
Kink resistance and deliverability are greatly enhanced with a metal braided shaft.
Superior Aspirating Performance
A large aspiration lumen ensures superior aspirating performance.
Smooth Insertion into Vessels
A hydrophilic coating enables smooth insertion.

Product Specifications

Catalogue
number		 Compatible guiding catheter Maximum compatible guidewire (inch) Shaft Wire lumen Effective length of shaft (mm)
Size Minimum inner diameter (inch/mm) Outer diameter (Fr) Inner diameter (mm) Outer diameter (mm) Length (mm)
T3R6MA4 6Fr 0.070/1.78 0.014 4.05 1.1 1.7 120 1400
T3R7MA4 7Fr 0.080/2.03 0.014 4.65 1.3 1.9 120 1400
T3R7LA4 7Fr 0.080/2.03 0.014 4.65 1.3 1.9 120 1400
T3R7LA4N 7Fr 0.080/2.03 0.014 4.65 1.3 1.9 120 1400
　With core wire 　Without core wire
