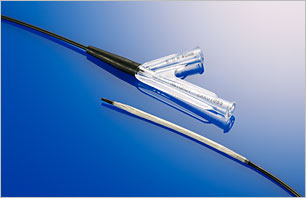

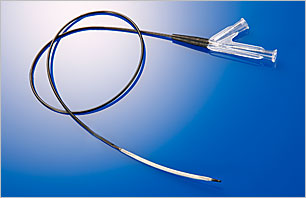

35YOROI HC
35YOROI HC
Hydrophilic Coating
Hydrophilic Coating（HC） of the balloon improves the crossability to the lesion compared to our previous product
Non-compliant Balloon
The balloon has a wide wire working range and can be firmly expand at low pressure or high pressure
Maximum compatible guidewire outer diameter: 0.035 inch
| Catalogue Number | Catheter Effective Length (mm) |
Balloon Diameter (mm) |
Balloon Length (mm) |
Shaft Diameter (Fr/mm) |
Compatible Sheath (Fr) |
|---|---|---|---|---|---|
| YR45-4020HC | 450 | 4.0 | 20 | 5.0/1.65 | 5 |
| YR45-5020HC | 450 | 5.0 | 20 | 5 | |
| YR45-6020HC | 450 | 6.0 | 20 | 6 | |
| YR45-4040HC | 450 | 4.0 | 40 | 5 | |
| YR45-5040HC | 450 | 5.0 | 40 | 5 | |
| YR45-6040HC | 450 | 6.0 | 40 | 6 | |
| YR45-7040HC | 450 | 7.0 | 40 | 6 | |
| YR45-4060HC | 450 | 4.0 | 60 | 5 | |
| YR45-5060HC | 450 | 5.0 | 60 | 6 | |
| YR45-6060HC | 450 | 6.0 | 60 | 6 | |
| YR45-5080HC | 450 | 5.0 | 80 | 6 | |
| YR45-6080HC | 450 | 6.0 | 80 | 6 | |
| YR75-4020HC | 750 | 4.0 | 20 | 5 | |
| YR75-5020HC | 750 | 5.0 | 20 | 5 | |
| YR75-6020HC | 750 | 6.0 | 20 | 6 | |
| YR75-4040HC | 750 | 4.0 | 40 | 5 | |
| YR75-5040HC | 750 | 5.0 | 40 | 5 | |
| YR75-6040HC | 750 | 6.0 | 40 | 6 | |
| YR75-7040HC | 750 | 7.0 | 40 | 6 | |
| YR75-4060HC | 750 | 4.0 | 60 | 5 | |
| YR75-5060HC | 750 | 5.0 | 60 | 6 | |
| YR75-6060HC | 750 | 6.0 | 60 | 6 | |
| YR75-5080HC | 750 | 5.0 | 80 | 6 | |
| YR75-6080HC | 750 | 6.0 | 80 | 6 |
